(1) |
RANGE
OF APPLICATION |
|
|
˙ |
PROMINENT
FEATURES AND USAGE COMPENSATE THE EXPANSION WITH HEAT AND
CONTRACTION WITH COLD, ABSORBING VIBRATION. |
|
|
˙ |
MEDIA:
SAME AS THE PIPELINE. |
|
|
˙ |
TEMPERATURE
RANGE: -30 ~ +180ºC
(-22 ~ +356ºF) |
|
|
˙ |
PRESSURE
IS SHOWN AS FOLLOW
|
|
(2) |
PRODUCT
ADVANTAGES |
|
|
˙ |
ENORMOUS
COMPENSATION, ABSORBING VIBRATION |
|
|
˙ |
COMPENSATORS
OF 3M(118in.) IN DIAMETER ARE AVAILABLE |
|
|
˙ |
BELLOWS
LINED WITH PTFE ARE REINFORCED WITH A METAL OR RUBBER SO
THAT THE PERFORMANCE OF PRESSURE-RESISTING IS IMPROVED
|
|
(3) |
INSTALLATION
DIMENSION -
SEE TABLE |
EXPANSION
JOINT |

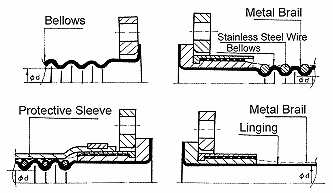

EXPANSION JOINT STRUCTURE
|
【EXPANSION
JOINT PARAMETRIC TABLE】
| DN |
Length
(mm) |
Thick-
ness
δ
(mm)
|
Ring
Dia
d
(mm) |
Nr
of
Corru-
gation |
Parameter |
Flange |
Weight |
±△x
(mm) |
±△Y
(mm) |
a |
A |
D |
D1 |
∮ |
n |
b |
| mm |
in. |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
kg |
lb |
| 20 |
3/4 |
60 |
2.0 |
3 |
3 |
10 |
8 |
20 |
155 |
105 |
75 |
14 |
4 |
10 |
1.2 |
2.6 |
| 25 |
1 |
65 |
12 |
8 |
20 |
165 |
115 |
85 |
14 |
4 |
10 |
1.4 |
3.1 |
| 32 |
11/4 |
70 |
14 |
12 |
20 |
190 |
135 |
100 |
18 |
4 |
10 |
2.5 |
5.5 |
| 40 |
11/2 |
75 |
17 |
16 |
25 |
200 |
145 |
110 |
18 |
4 |
10 |
3 |
7 |
| 50 |
2 |
82 |
2.5 |
20 |
20 |
25 |
215 |
160 |
125 |
18 |
4 |
12 |
3.8 |
8.5 |
| 65 |
21/2 |
90 |
22 |
22 |
30 |
235 |
180 |
145 |
18 |
4 |
12 |
4.8 |
11 |
| 80 |
3 |
95 |
3.5 |
24 |
24 |
30 |
265 |
195 |
160 |
18 |
4 |
14 |
6 |
13 |
| 100 |
4 |
100 |
3.0 |
26 |
25 |
30 |
285 |
215 |
180 |
18 |
4 |
14 |
7.8 |
17 |
| 125 |
5 |
110 |
29 |
25 |
30 |
315 |
245 |
210 |
18 |
8 |
16 |
8.5 |
19 |
| 150 |
6 |
120 |
4 |
32 |
20 |
25 |
360 |
280 |
240 |
23 |
8 |
16 |
9 |
20 |
| 200 |
8 |
130 |
40 |
20 |
25 |
415 |
335 |
295 |
23 |
8 |
18 |
9.5 |
21 |
| 250 |
10 |
140 |
40 |
12 |
15 |
470 |
390 |
350 |
23 |
12 |
20 |
16 |
35 |
| 300 |
12 |
150 |
40 |
10 |
10 |
525 |
440 |
400 |
23 |
12 |
22 |
19 |
42 |
| 350 |
14 |
160 |
3.5 |
5 |
40 |
10 |
10 |
585 |
485 |
445 |
23 |
12 |
22 |
26 |
57 |
| 400 |
16 |
170 |
40 |
10 |
10 |
655 |
535 |
495 |
23 |
16 |
22 |
30 |
66 |
| 450 |
18 |
180 |
40 |
10 |
10 |
690 |
590 |
550 |
23 |
16 |
22 |
36 |
80 |
| 500 |
20 |
200 |
6 |
40 |
10 |
10 |
760 |
640 |
600 |
23 |
16 |
22 |
42 |
93 |
| 600 |
24 |
210 |
40 |
10 |
10 |
870 |
755 |
705 |
25 |
20 |
22 |
55 |
121 |
| 700 |
28 |
220 |
40 |
10 |
10 |
985 |
860 |
810 |
25 |
24 |
22 |
74 |
163 |
|
NOTE: THE SIZE OF INSTALLING FLANGE
TAP REFER
TO HG5010-PN1.0MPa(DN20~300),
HG5010-PN0.6MPa(DN350~700)
|
| CURVATURE
ALLOWANCE OF EXPANSION JOINT |
 |
AXIAL DEVIATION  X |
LATERAL
DEVIATIONY |
ANGULAR
DEVIATION |
| TEMP.
- PRESSURE FIGURES OF EXPANSION JOINT |
|
PRESSURE
CONDITIONS
|
| Rep. |
DN(mm) |
| A |
700 |
| B |
600 |
| C |
350-500 |
| D |
125-300 |
| E |
50-100 |
| F |
20-40 |
|
VACUUM
CONDITIONS
|
| BIG
EXPANSION JOINT STRUCTURE |
BIG
EXPANSION JOINT |
 |
 |
【BIG
EXPANSION JOINT PARAMETRIC
TABLE】
|
DN |
LENGTH
(mm) |
THICK-
NESS
δ
(mm) |
NR
OF
CORRU-
GATION |
PARAMETER |
Flange |
WEIGHT |
±△x
(mm) |
±△Y
(mm) |
a |
D |
D1 |
∮ |
n |
b |
| mm |
in. |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
kg |
lb |
| 600 |
24 |
250 |
3 |
1 |
25 |
10 |
10 |
755 |
705 |
25 |
20 |
22 |
55 |
121 |
| 700 |
28 |
250 |
3 |
25 |
10 |
10 |
860 |
810 |
25 |
24 |
22 |
74 |
163 |
| 800 |
32 |
250 |
3 |
25 |
10 |
10 |
975 |
920 |
30 |
24 |
24 |
92 |
202 |
| 1000 |
40 |
250 |
3 |
25 |
10 |
10 |
1175 |
1120 |
30 |
28 |
24 |
104 |
229 |
| 1200 |
48 |
250 |
3 |
25 |
10 |
10 |
1375 |
1320 |
30 |
32 |
24 |
130 |
286 |
| 1400 |
56 |
250 |
3 |
25 |
10 |
10 |
1575 |
1520 |
30 |
36 |
24 |
156 |
344 |
| 1600 |
64 |
250 |
3 |
25 |
10 |
10 |
1785 |
1730 |
30 |
40 |
24 |
190 |
419 |
| 2000 |
80 |
300 |
4 |
25 |
10 |
10 |
2185 |
2130 |
30 |
48 |
26 |
250 |
550 |
|
NOTE: THE SIZE OF INSTALLING FLANGE
TAP REFER
TO HG5010-PN0.6MPa(DN600~1000),
HG5010-PN0.25MPa(DN1200~2000)
|
| METAL
PTFE COMPENSATOR STRUCTURE |
METAL-
PTEF COMPENSATOR |
 |
 |
【METAL-PTFE
COMPENSATOR PARAMETRIC
TABLE】
|
DN |
LENGTH
(mm) |
PRESSURE |
PARAMETER |
FLANGE |
WEIGHT |
±△x
(mm) |
±△Y
(mm) |
a |
D |
∮ |
n |
| mm |
in. |
MPa |
(mm) |
(mm) |
kg |
lb |
| 40 |
11/2 |
190 |
1.6 |
3.5 |
1.5 |
14 |
110 |
18 |
4 |
6.9 |
15 |
| 50 |
2 |
210 |
4.5 |
1.5 |
12 |
125 |
18 |
4 |
9.2 |
20 |
| 65 |
21/2 |
225 |
5 |
1.5 |
10 |
145 |
18 |
4 |
12.5 |
27.5 |
| 80 |
3 |
235 |
6 |
2 |
12 |
160 |
18 |
8 |
16.2 |
35.3 |
| 100 |
4 |
300 |
1.6 |
4.6 |
0.8 |
5 |
180 |
18 |
8 |
19 |
42 |
| 150 |
6 |
300 |
4.4 |
0.6 |
5 |
240 |
23 |
8 |
28 |
61.5 |
| 200 |
8 |
400 |
8 |
1.2 |
5 |
295 |
23 |
12 |
38 |
83.5 |
| 250 |
10 |
400 |
7.5 |
1 |
5 |
355 |
25 |
12 |
58 |
128 |
| 300 |
12 |
450 |
8 |
1 |
5 |
410 |
25 |
12 |
76 |
167 |
| 350 |
14 |
450 |
8 |
1 |
5 |
470 |
25 |
16 |
96 |
211 |
| 400 |
16 |
450 |
8 |
0.8 |
4 |
525 |
30 |
16 |
118 |
260 |
| 450 |
18 |
450 |
8 |
0.7 |
3.5 |
585 |
30 |
20 |
144 |
317 |
| 500 |
20 |
500 |
8 |
0.7 |
3.2 |
650 |
34 |
20 |
204 |
449 |
| 600 |
24 |
600 |
13 |
1.8 |
4 |
770 |
41 |
20 |
263 |
579 |
| 700 |
28 |
600 |
0.6 |
24 |
1.6 |
7.2 |
810 |
25 |
24 |
173 |
380 |
| 800 |
32 |
600 |
24 |
2.2 |
6 |
920 |
30 |
24 |
212 |
466 |
| 900 |
36 |
700 |
23 |
1.9 |
5.2 |
1020 |
30 |
24 |
265 |
583 |
| 1000 |
40 |
700 |
22 |
1.6 |
4.8 |
1120 |
30 |
28 |
306 |
673 |
| 1200 |
48 |
700 |
0.25 |
38 |
2.4 |
6.6 |
1320 |
30 |
32 |
383 |
843 |
| 1400 |
56 |
700 |
37 |
2 |
5.6 |
1520 |
30 |
36 |
445 |
979 |
| 1600 |
64 |
700 |
36 |
1.7 |
4.8 |
1730 |
30 |
40 |
526 |
1157 |
|
NOTE: THE SIZE OF INSTALLING FLANGE
TAP REFER
TO :
JB/T84-94,DN40~600(USE 1.6MPa CLASS),
DN700~1000 (USE 0.6MPa CLASS),
DN1200~1600 (USE
0.25MPa CLASS).
|
| PTFE BELLOWS ARE COVERED
WITH ANTICORROSIVE METALLIC BRAIDS OR PLASTIC BRAIDS IN A
BID TO RESIST TO CORROSION, HIGH TEMPERATURE AS WELL AS
PRESSURE. |
| BELLOWS
STRUCTURE |
BELLOWS |
 |
 |
| 【BELLOWS
FLANGES SIZE TABLE】 |
|
DN |
D2 |
a |
Flange |
| mm |
in. |
mm |
mm |
n-xD1 |
| 15 |
1/2 |
33 |
25 |
4-14x65 |
| 20 |
3/4 |
40 |
29 |
4-14x75 |
| 25 |
1 |
49 |
29 |
4-14x85 |
| 32 |
11/4 |
60 |
29 |
4-18x100 |
| 40 |
11/2 |
72 |
29 |
4-18x110 |
| 50 |
2 |
86 |
33 |
4-18x125 |
| 65 |
21/2 |
105 |
33 |
4-18x145 |
| 80 |
3 |
124 |
36 |
8-18x160 |
| 100 |
4 |
148 |
36 |
8-18x180 |
|
NOTE: THE SIZE OF INSTALLING FLANGE
TAP REFER
TO :
HG5010-PN1.6MPa
|
|
BELLOWS
FLANGE
|
|
|
